Custom-Bilt Metal roofing systems are one of the most beautiful and highly functional roofing solutions.
On This Page
Concealed fastener panels roll-formed onsite in CB and SL series profiles.
Brochures, color charts, fire ratings, and seaming machine rentals.
Concealed fastener panels field roll-formed on the jobsite to exact length. Available in PVDF-coated finishes (Kynar 500®, Hylar® 5000, Fluropon®) and bare metals. Cool Roof options reflect up to 70% of solar energy.
Most popular CBM standing seam profile. Field roll-formed on the jobsite to eliminate transit damage and waste.
½:12
1″
1:12
Snap-lock and mechanical seam options across three seam heights. Concealed fastener, onsite roll-forming available.
Mid-height snap-lock profile. Onsite roll-forming available.
1.5″
1″
1″
1″

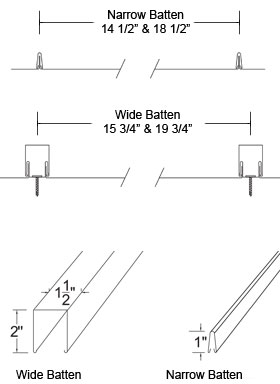

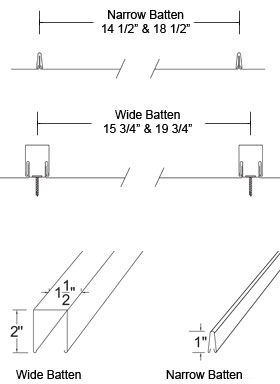

Narrow Batten – 14.5″, 18.5″
Wide Batten – 15.75″, 19.75″
36″
36″
Steel
Confirm
TFR-36 or PBR? — TFR-36 for roof/wall combos needing skylight compatibility. PBR for structural overlap and ag builds. Not sure — talk to a rep.
Rustic wood-shake aesthetic in aluminum. Interlocks on all four sides for a weather-tight seal. Rated to 120 mph wind. Made from 98% post-consumer recycled metal. Cool Roof paint system standard.
Confirm
Confirm
CB-2000 · CB-150 · SL series · Copper
On This Page
Concealed fastener systems like standing seam hide all clips and fasteners beneath interlocking panel seams, creating a clean, unbroken roofline. Exposed fastener panels use visible screws driven through the panel face into the structure below — faster to install and more economical, but with more penetration points. Standing seam is preferred for architectural and residential projects; exposed fastener excels in agricultural, industrial, and budget-conscious commercial builds.
Standing seam metal roofing features raised seams that interlock vertically above the flat panel surface. Seam heights typically range from 1" to 2", with taller seams providing greater wind uplift resistance. Architects and contractors specify standing seam for its weathertight performance, thermal movement allowance, and distinctive shadow lines. CBM offers both mechanical seam (CB series) and snap-lock (SL series) options.

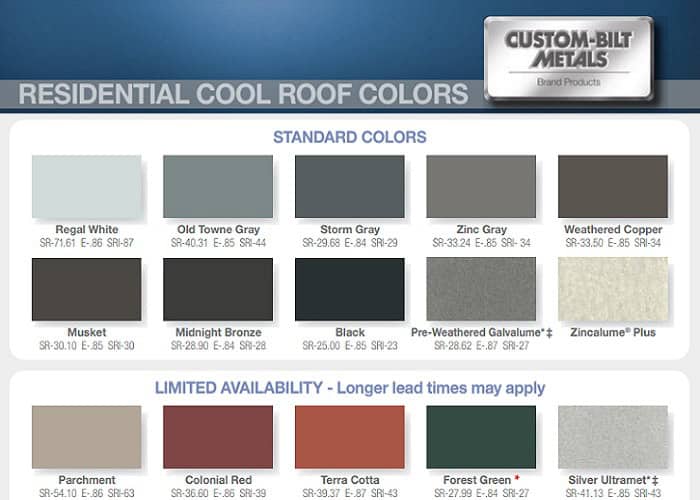

PVDF coatings like Kynar 500® and Hylar 5000® reflect up to 70% of solar energy and re-emit absorbed heat efficiently. Buildings with Cool Roof rated metal panels can reduce cooling costs by up to 20% compared to standard roofing materials. All CBM coated panels are available in Cool Roof compliant color options.
For projects where natural patina is the design intent, CBM offers copper, Rheinzink® zinc, bare Zincalume® steel, and A606 weathering (Cor-ten style) steel. These materials develop distinctive character over time and carry no reflective or emissive coatings. Available across most standing seam profiles.
